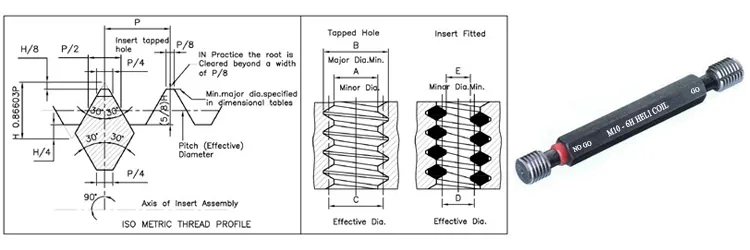

Gauges to check Tapped Hole to receive Wire Thread Inserts / Helicoil thread Inserts *.

These gauges are used for checking oversize tapping, done for fitting wire thread inserts. The threads before fitting wire thread inserts are checked with these gauges.

Specification:

BS 4377, DIN 1840, SAE MA 1567 & Gauging Practice ISO 1502 : 1996, IS 2334 : 2001

Manufacturing Range :

We manufacture Wire Thread Inserts for ISO Metric, Unified, BSW / BSF / Whitworth, BSP / G Thread Profiles.

These gauges are used for checking oversize tapping which is done for fitting wire thread inserts. Wire thread inserts are having external threads which are oversize than the standard size and internal threads which are of standard dimensions. When tapped internal threads become oversize and standard screw cannot be fitted then wire thread inserts are used. Oversize tapping is done using wire thread taps, and wire thread inserts are fitted in this.

These are also known as Heli-coil thread inserts. 'Heli-coil' is a registered Trade mark of Emhart Tecknologies, USA.
