Pg Thread Gauges

Stub Acme Thread Gauges

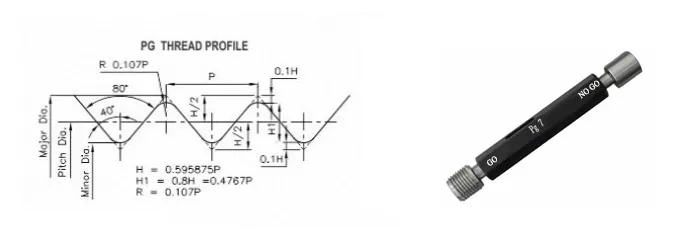

PG Threads are based on DIN standard and are used for checking threads of pipe fittings used for electrical wiring.

Specification:

Basic Dimensions: DIN 40430 : 1971
Gauging Practice: DIN 40431 (1 & 2 ) : 1972.

Manufacturing Range :

Pg sizes 7, 9, 11, 13.5, 16, 21, 29, 36, 42, 48.

Size TPI Type of Thread Gauges used
PG7 20 Thread Plug Gauges Thread Ring Gauges
Rings.
Check Plug Gauges to check NEW Rings. Wear Check Plug Gauges to check/ calibrate used
PG9 18
PG11 18
PG13.5 18
PG16 18
PG21 16
PG29 16
PG36 16
Pg42 16
Pg48 16
