BSPTr Thread Gauges

BSPTr Thread Gauges

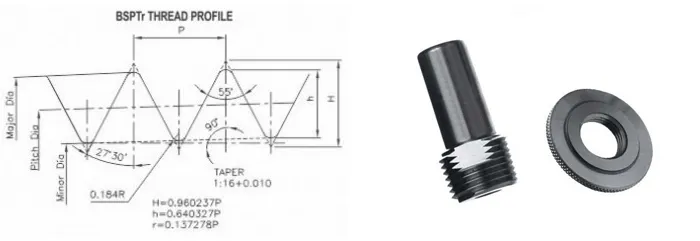

BSPTr Threads can provide pressure tight seal on threads without use of a sealing compound. They are used in pipe assemblies where pressure tight joint is required on threads, without use of sealing compound.

Two Types of Gauges are recommended System A & System B.

Specification:

BS 21 - 1985 Indian Standard: Basic Dimensions: IS 554 : 1999 & Gauging Practice: IS 8999 : 2003.

Manufacturing Range :

Taper Thread Plugs & Rings for Pipe sizes 1/16" to 6" in both System A & System B Design.

Diameter (Inch) TPI Type of Gauges
1/16, & 1/8 28 Thread Plug Gauges
System A.
& System B.
Thread Ring Gauges Gauges
System A
& System B
Check Plug to check
NEW Rings System A
& System B
Wear Check
Plug Gauges to check/ calibrate used Rings. System A
& System B
1/4 & 3/8 19
1/2 & 3/4 14
1,1.1/4,1.1/2,2, 2.1/2, 3 11
4, 5, 6
