Stub Acme Thread Gauges

Stub Acme Thread Gauges

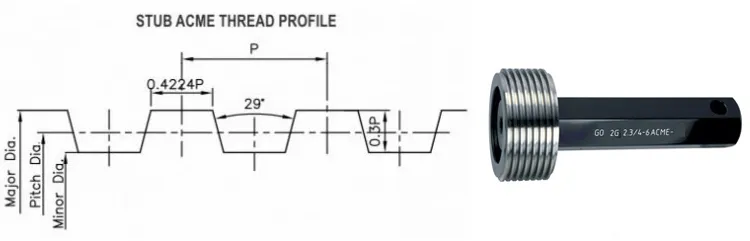

STUB ACME Threads are similar to ACME threads except that the thread depth/ height is less than ACME. These are used for thin walled applications, where coarse pitch is needed like tubes used in Oil fields equipments, where standard ACME threads can not be used due to thin wall.

Specification:

American Specifications: ANSI/ ASME B1.8 : 1988.

Manufacturing Range :

Thread Plugs, Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/4" to 12" and TPI from 16 to 3.

Gauge Type Diameter Range (Inch) TPI Tolerance Class
Thread Plug Gauges. 1/4 - 5
Above 5 up to 12
Diameter can be supplied based on customer request.
16, 14, 12, 10, 8, 6, 5, 4, 3
TPI not covered here can be supplied based on customer request.
2G, 3G & 4G 2C, 3C & 4C
Thread Ring Gauges. 1/4 - 5
Above 5 up to 10.2
Diameter can be supplied based on customer request.
16, 14, 12, 10, 8, 6, 5, 4, 3
TPI not covered here can be supplied based on customer request.
2G, 3G & 4G 2C, 3C & 4C
Plain Plugs to check Minor Diameter of Internal Threads To cover above Diameter range.
Plain Rings to check Major Diameter of External Threads. To cover above Diameter range.
Check Plug Gauges To check NEW Go & Nogo Ring Gauges as given above.
Wear Check Plug Gauges To check / calibrate USED Go & Nogo Ring Gauges as given above.
